Spitfire & GT6 Racing Photos

Return to "Car Photos" index

To have your car featured here and in the next Spitfire/GT6 Magazine, visit the submission page for info.

Spitfire | GT6 | Herald/Sport 6/ Vitesse | outside Triumph Racing links

Spitfire Racers

Cash Billups, Oklahoma USA, 1962 Mk 1

Tom Cook, Pennsylvania USA, 1962 Mk 1
I have had this race car since 1983 I was 21 years old. I raced it in SCCA the early to mid 80s mostly at Watkins Glen, Limerock and Nelson Ledges, then got married then a child and started a business. So the old girl sat in a barn covered in hay and chaff for 22 years. Unfortunately got divorced so guess what came out of the barn. My son now is 17 years old and wow what a helper. I've taught him lots and we have had lots of good father and son times working on this car. The first time out racing this year the engine was still 22 years old...never took it apart and here I was was leading the race in HP and caught on fire...black flag darn. It was a small fire got the oil problem fixed. On Sunday I got the first checker flag, we won! It was great!
Now about the car...there is not much on the car that's still original, not modified or custom made. It has a full type cage integrated into frame and suspension. QA1 front and rear adjustable shocks and springs. The engine is highly modified 14.5:1 comp with BHP head and carbs and camshaft, Venolia pistons 1 1/4 SU carbs with flow-benched intakes and vel stacks. All blueprinted to the max. MSD crank trigger ignition and can be switched driving to dual point distributor, REK gear reduction starter, Tilton 4 1/2" clutch system, Webster gearbox, aluminum bellhousing, transcase, driveshaft. Race axles, etc, Rick Cline rear spring, custom made 2 1/2" full straight exhaust with tuned Stahl header, ATL fuel cell, dual pumps, all Aeroquip, Calaman custom radiator and shroud. Kirkey seat, mod drive tunnel, full race gauges, Tilton brake pedals, Revolution wheels Goodyear slicks and more.

Tim Slater, USA, 1963 Mk 1

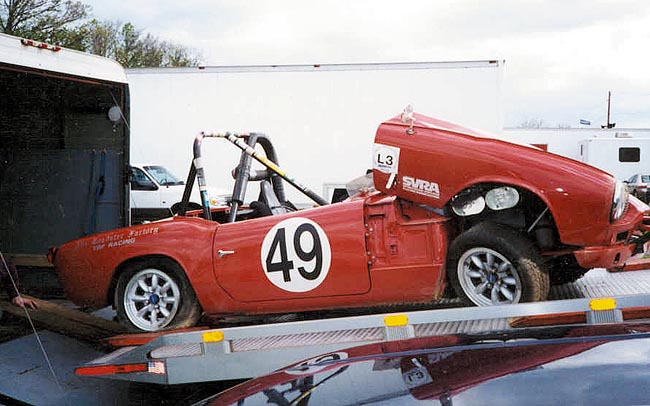

Russ Moore, New York USA, 1963 Mk 1
1296cc, runs with two twin Webers, stock pistons and crank and an up-rated camshaft. The car had an extensive rebuild after a serious accident at Summit Point, West Virginia four years ago where Russ rolled the car and broke four ribs. (Ouch!) The year-long rebuild included the replacement of the old swing axles, a new fuel cell, an up-rated fire extinguishing system, steel bulkheads, adjustable racing shocks, a new rear quarter panel, new doors with steel reinforcements in them, and a new Mk 3 bonnet.

Joe Curry, Arizona USA, 1963 Mk 1 "Tiny Tim"
with Honda S2000 Engine (check out link)

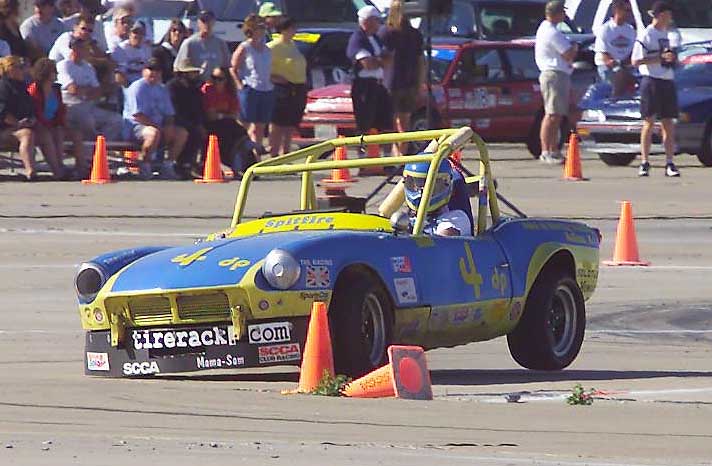

Rocky Entriken, Kansas, 1964 Spitfire "Li'l Blue"
This car has competed in more SCCA Solo II National Championship events than any other single car of any class or category (28)!
Power from an Able Co. engine built by Mid-Michigan Imports and GT6 gearbox West Michigan Imports. It has an Able rear suspension, Hoosier cantilever slicks on Revolution wheels, fiberglass hood and rear deck lid, ATL fuel cell, oil cooler, Kirkey seat, Autopower rollbar with a Kirk cage extension.

Stefan Klemm, Germany, 1964 FIA GTS-8 Spitfire

Daniel Senn, Switzerland, 1964 Spitfire (Wedgewood Blue)
FIA Homolgated for Historic Rallyes and Hillclimbs.

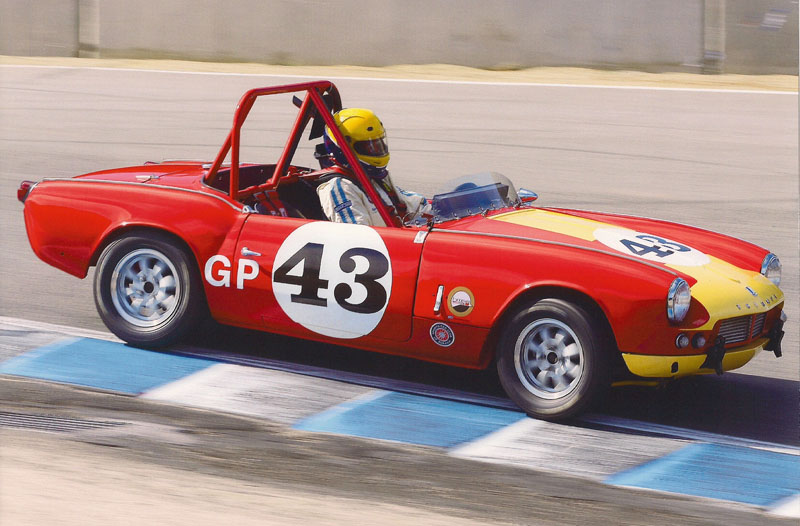

Tom Turner, California, 1964 Spitfire
The interior was restored to original right down to the carpets, door cards, and passenger seat; all fiberglass was replaced with original panels and a single hoop roll bar was substituted per 1968-70 SCCA GCR. The engine is still an 1147cc with standard rockers, crank and SU carburetors. The gearbox is a 1964 w/o 1st. gear syncro. When I had it painted, it was on a rotisserie so we painted inside, outside, under and finished with a clearcoat. Our first vintage race was the Reno Historics (HMSA) in 2007. Since then I taken it to the Wine Country Historics, Sonoma, Monterey, Coronado Festival of Speed, Kastner Cup at Laguna Seca and numerous other venues for vintage competition. In 2010, MSN selected this car as one of "The 10 Coolest Cars at the 2010 Rolex Monterey Motorsports Reunion".

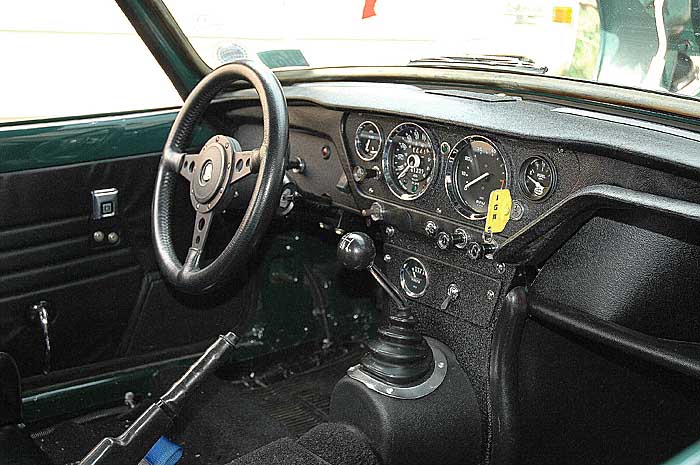

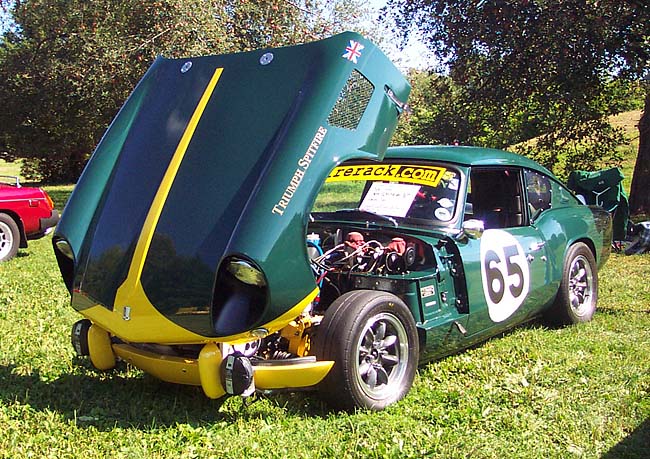

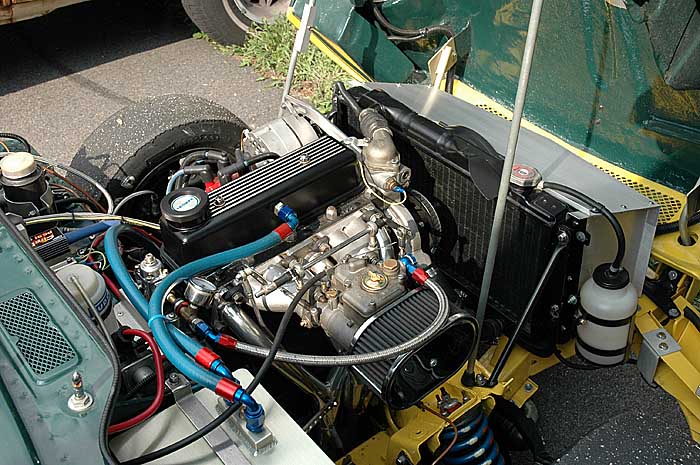

Bob Totten, 1964 Spitfire GT

The real! ABU 4B factory LeMans Spitfire

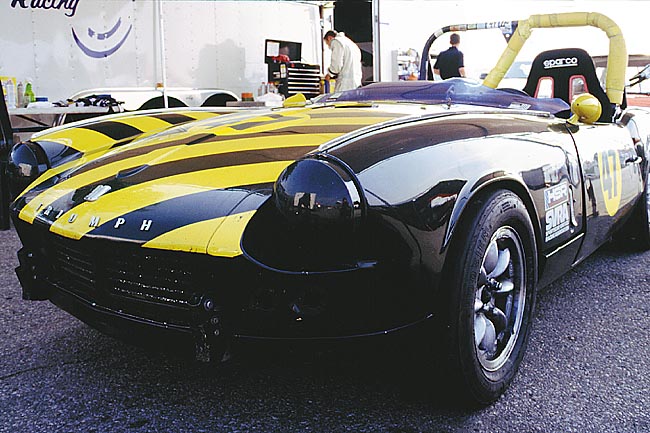

Vintage Racing Services, Conn. USA, 1965 Mk 2

MLC Racing, Mark Howison racing his Spit back in the 70's


Daniel Martinez (2001 F Production Champ), 1965 Mk2, 1147cc

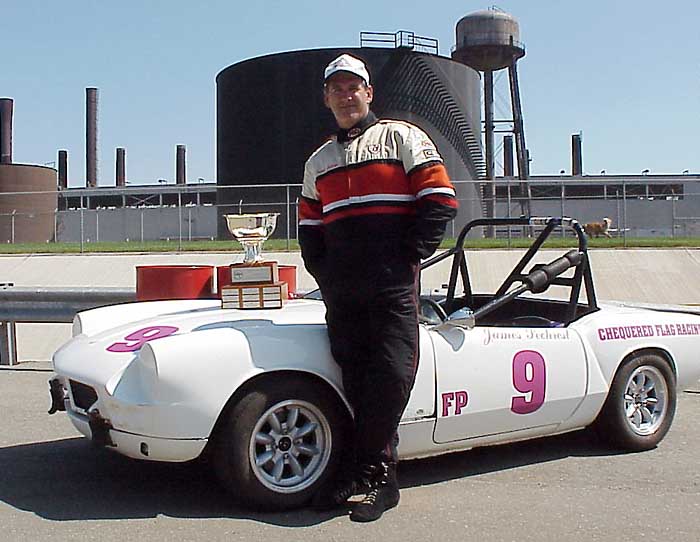

Jim Sechrest (1999 VARA F Production Champ & Driver of the Year), 1965 Mk 2, 1147cc

Lanie Sechrest (2000 VARA Woman Driver of the Year), 1965 Mk 2, 1300cc

Herby Senn, Switzerland, 1967 Spitfire MkIII
Full Circuit and Hillclimb Race Car

Rick Kristoff, Michigan USA, MkIII
There isn't much on the car thats still original or not modified or custom made.It has a full tube-frame type cage, integrated into frame and suspension. Mod front and rear suspensions with custom mounts, shocks and springs.Engine is highly modified 15:1 comp with plenty of internal work and head mods....1 1/2" SUs with flow-benched intakes and vel stacks. All blueprinted to the max. Electromotive crankfire system, TSI gear reduction starter Quartermaster 5 1/2" clutch system, Houseman tranny, aluminum bellhousing, transcase, driveshaft. Race axles,etc, custom made 2 1/2" full straight exhaust with tuned Stahl header, Aum fuel cell,dual pumps,all Aeroquip, Griffin custom radiator and shroud. Custom alum race seat, mod drive tunnel, full race gauges, adj brake prop valve and more.

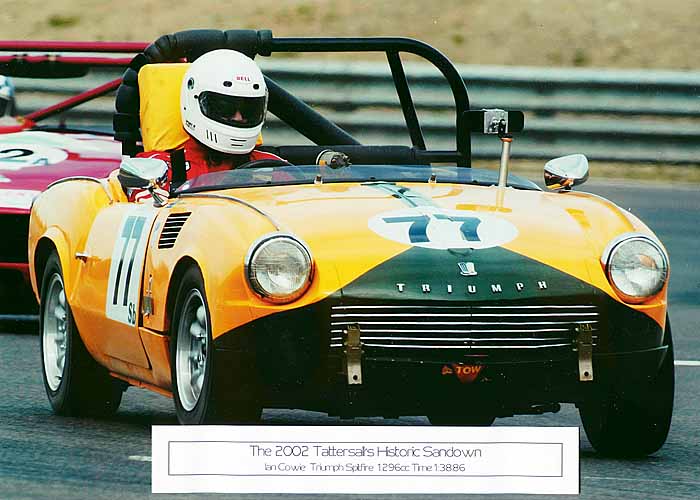

Ian Cowie, Melbourne Australia, 196? Spitfire

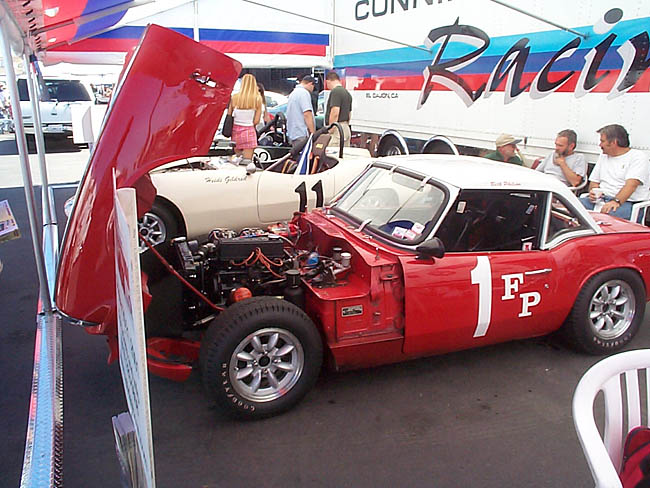

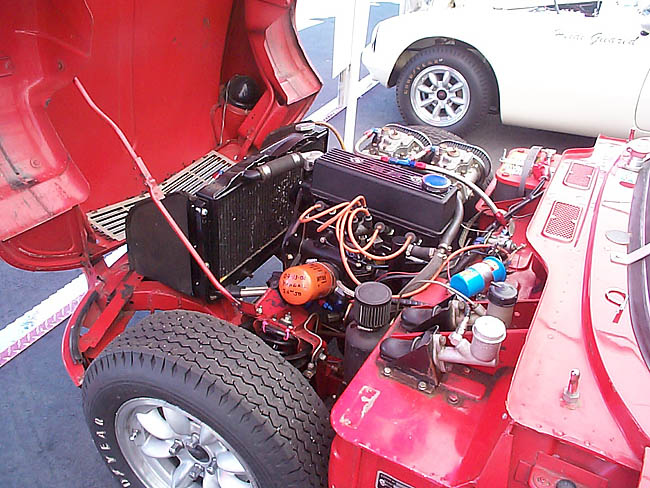

Beth Philion, California USA, Mk 2

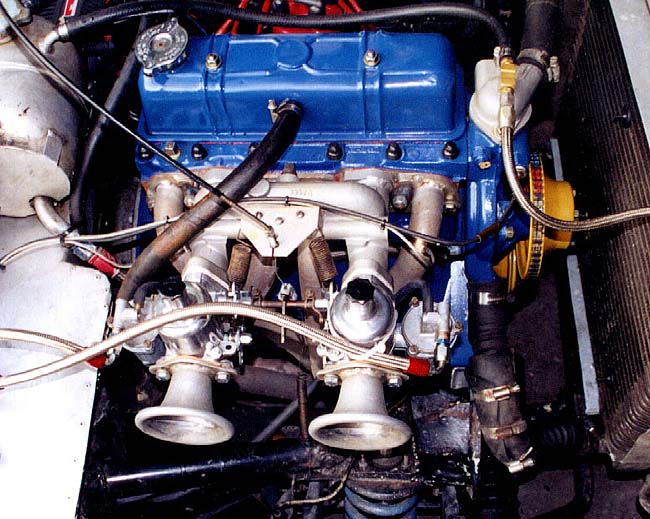

Bob Beaulieu, Massachusetts USA, Mk2

"Basic G-Production Spitfire: Mallory ignition (no crank fires... too many times the sensor goes hay-wire) You'll note all the brake cylinders and clutch are enclosed due to the complete Tilton assembly, which had to carve away half the bulkhead.. therefore had to recovered. Fuel pressure gauge and Holley regulator can be seen on firewall...alumininum radiator (with electric fan.. too many years of sitting in hot false grids)...I try to keep the expensive Aeroequip to a minimum"

Mikael Schultz, Sweden, 1966 MK2

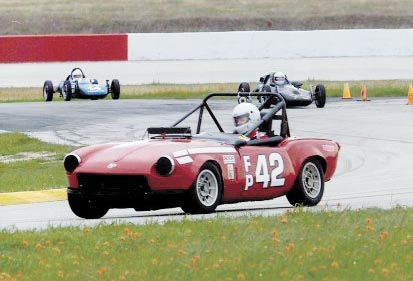

Susan (Hensley) Kahler, Texas USA, 1967 Mk3, "Tristan"

Tom Feller, Michigan, USA, 1969 Mk3

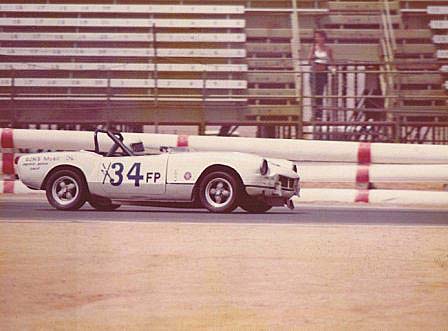

Mark Howison at turn 6 of Riverside International Raceway in the mid 70's

Joe Beckett, California, USA, 1972 Mk4

Tony Fasola, Georgia, USA, 1974 1500
Rebuilt from the ground up throughout the years it is cutting edge in Spitfire developement. Computer designed rear swing axle, full NASCAR cage, removable fibreglass panels (except doors, as required by rules) The Spit is powered by a Blind Hog Motorsports engine which includes a Moldex crank, Carrillo Rods, and cam by Rick Cline. The car makes power to about 8100 revs.

Jill Torres, Michigan, USA, 1975 1500

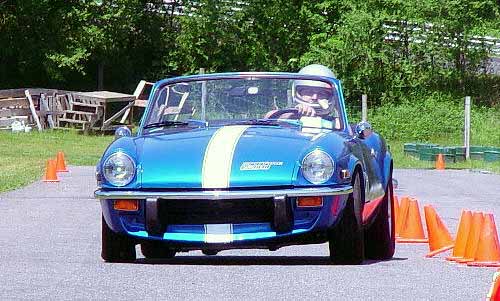

Brian Ready, New York, USA 197? 1500 (2000 Ford Focus Blue)
Photo by Bill Sharp

Jeremy Fohrenkamm , NJ, 1976 1500
I managed to take fastest overall with a time 57.85 seconds (at the Healey Hill Climb put on by the Minnesota Austin Healey Club). Only the second time in the history of the event that a vintage car took top honors. And I must say, it's not like I only beat a bunch of MG's!!!!

Roy Oppedisano, Minnesota, 1976 1500
Alfa Romeo engine, 1250 lbs, Very fast ! Corners so hard, vision gets blurry!

Steve Adams, England, 197? 1500, OUCH!

Christopher Fourment, Texas, USA, 1979 1500 (94-Inca Yellow)

Marc Amschwand, Switzerland/England, 1980 1500
Me in OPP222V, Kevin Ginger (#2) avoiding narrowly #12 at Devils Elbow, Lydden Race Circuit.
This Spitfire was stolen a few years back. Please visit our "Stolen Page" for information.

?

Taken at Sebring early 2001

Taken at Walter Middy (Road Atlanta)

Jack Levy, Florida

GT6 Racers

Mark Loucks, New York Mk I GT6

Edwin Tiben, Holland 1968 Mk I GT6

A Mk2 GT6 of unknown ownership

Another Mk2 GT6 of unknown Spanish ownership.

Deon Hattingh in (South Africa) running his Mk2 GT6.

Ian Cowie, Melbourne Australia, 196? GT6

Drew Brown, Connecticut, 1968 GT6

2.0 liter, forged pistons, 11:1 comp, custom cam, MSD with Crane ignition, custom crank fluid damper, custom headers, etc.

Steve Smith, California, 1969 GT6
"on the way to Victory at California Speedway"

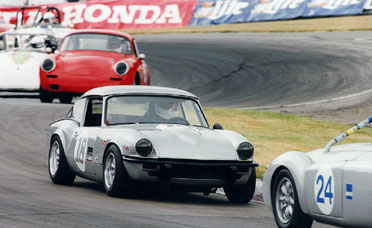

Doug Buchanan, Nebraska, 1971 Mk3 GT6
"We have had to modify, for safety reasons, the rear suspension using 280 ZX constant velocity joints and half shafts. We have used the original transverse leaf spring, pumpkin, and all the original pickup points to remain vintage legal. The car is still a 2 liter but I have gone to a TR6 gear box due to the horse power."

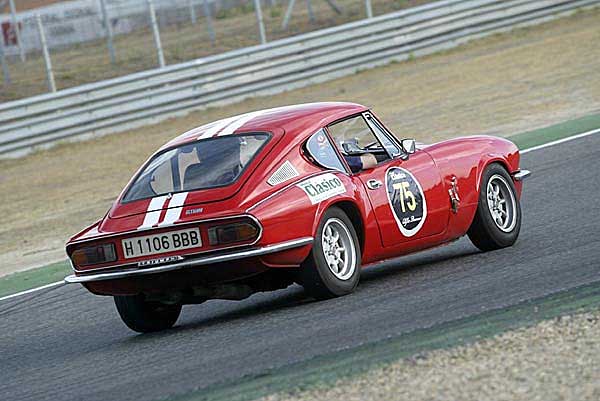

Jose Berlanga, Madrid, Spain Mk3 GT6
"Used for historic circuit and road rallies (just regularity)"

Rick Cline, Mk3 GT6
"photo legendary Spitfire driver Rick Cline at the 1974 SCCA National Races held at the Gainesville Raceway in Gainesville, Florida."

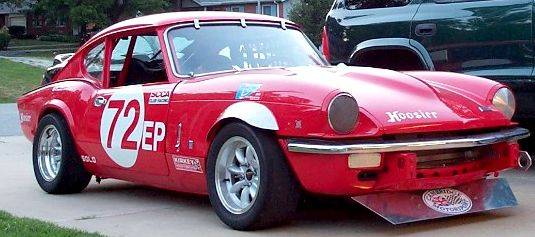

Andrew and Susan Stark, Missouri, 1972 Mk3 GT6

Triumph-tune headers, early heavy-duty valve springs, electronic ignition, electric fuel pump and electric fan.
updated photos

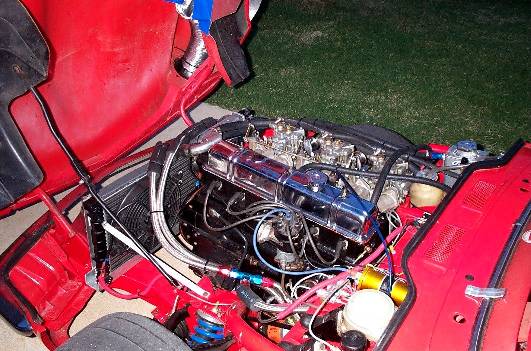

Triple Webers, larger radiator, oil cooler, added along with many upgrades
Click here for more photos and information about Andew's GT6

James J. Dolan, Pennsylvania, Group 44 Mk3 GT6

Herald - Sport 6 - Vitesse

?, Washington USA, 19?? Vitesse

owner: Mike Rockett, driver: RC Cook, UK

John Davies, Lancaster, UK
"it had a rear radiator, oil-to-water heat exchanger and double rear radius arms. 2500 engine with Lucas Pi. and SofS - "Son of Silverback" still racing. Rear axle has MGF uprights, Metro halfshafts and Volvo LoBro CV joints, to replace rear transmission weak points. And many 'aero' mods"

.

Outside Links

Classic Motor Racing Photos
many racing Spitfires and other Triumphs in England

A nice photo showing Group 44 and other Spitfires at VIR

Mike Downs Group 44 GT6

A good photo of a Group 44 GT6

John Kelly Group 44

A photo of Brian Furstenau

Tony Adamowicz (4/67) driving a Group 44 Spitfire

Another nice Spit photo

And another

And another

A photo of the Group 44 racing lineup
